Description

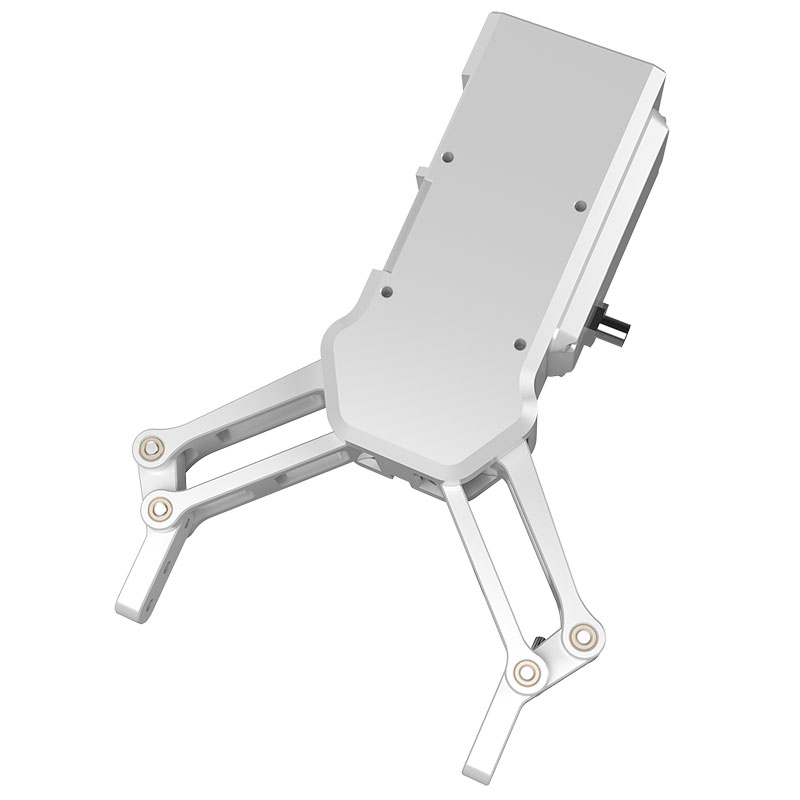

High-payload Cheap Electric Servo Gripper
The Z-EFG-100 manipulator servo gripper has high precision, supports soft gripping, and can easily grip fragile objects, such as pipes, eggs, etc., that cannot be achieved by air grippers.
- Large Stroke.
- EIA485 Wire Control.
- Adapt to a variety of robotic arms.
Product Parameters:
| Product Name: | Servo gripper | |
| Item No.: | EFG-100 | |
| Total Stroke | 90mm | |
| Clamping Force | 35-60N | |
| Max Clamping Weight | ≤0.5kg | |
| Repeated Positioning Accuracy | ± 0.02mm/td> | |
| Close or Opening Time | 1s | |
| Operating Temperature Range | 5~55℃ | |
| Adjustable Stroke | Adjustable | |
| Adjustable Gripping Force | Adjustable | |
| Weight | 0.925kg | |
| Dimension (L*W*H) | 203*144*45mm(Opened) 222*64*45mm(Closed) | |
| Controller Location Type | Built-in | |
| Power | 30W | |
| Rated Voltage | 24V | |
Product Description:
