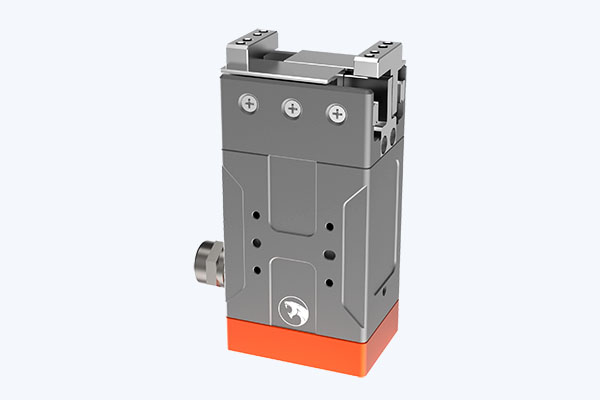

Z-EFG-30 Electric High Precision Gripper

Description

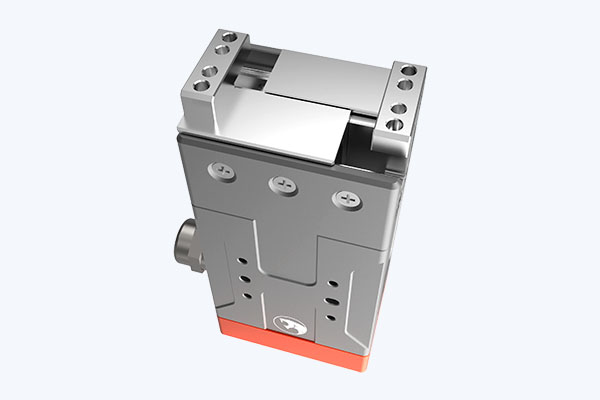

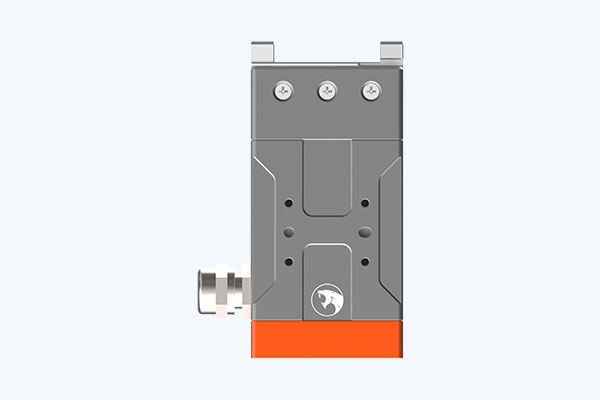

High precision gripper Z-EFG-30

The Z-EFG-30 is a compact high precision gripper designed for high-precision clamping tasks with adjustable force and stroke. Below is a summary of its key features and specifications:
Key Features:

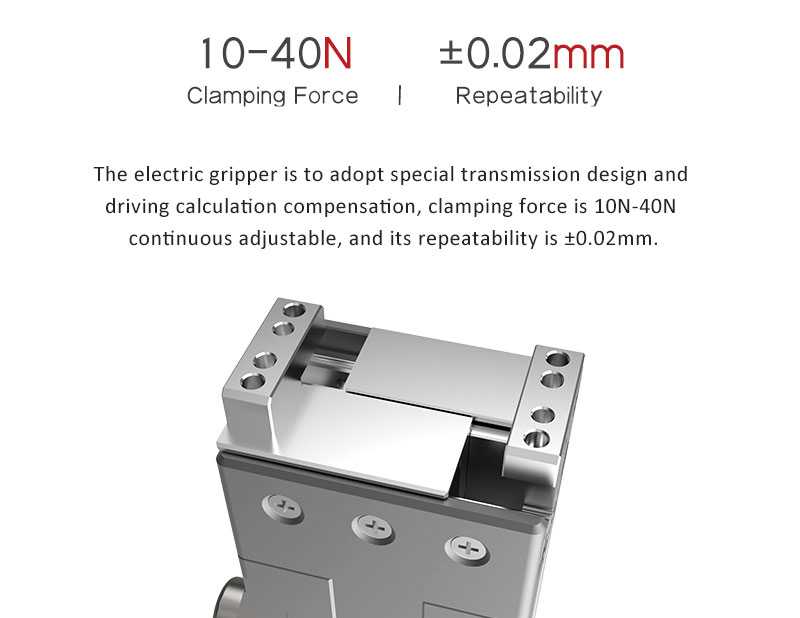

  • Clamping Force: 10N to 40N, continuously adjustable.
    Total Stroke: 30mm (adjustable).
    Repeatability: ±0.02mm, ensuring high precision.
    Speed: The shortest single stroke time is just 0.2s, which meets high-speed production line clamping requirements.

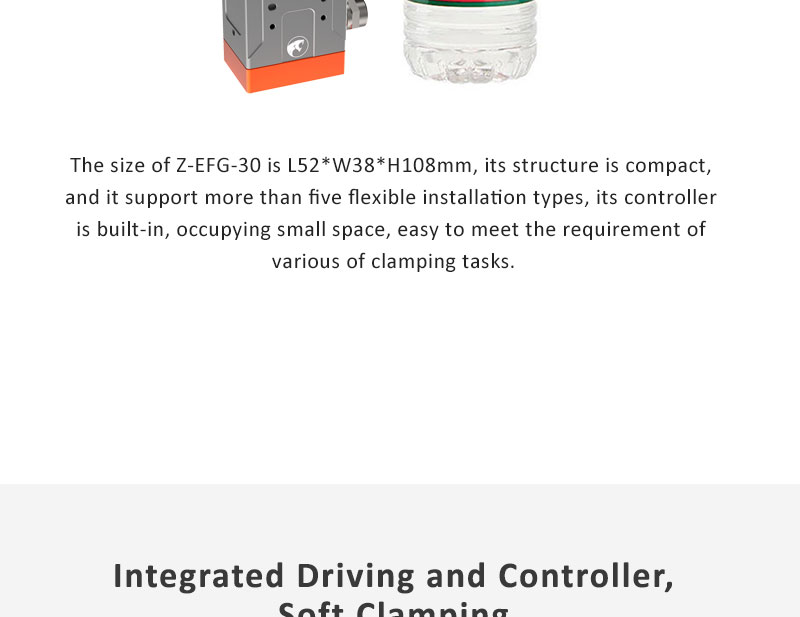

    Integration: Compact design (52mm * 38mm * 108mm) makes it easy to integrate into various systems and production environments.

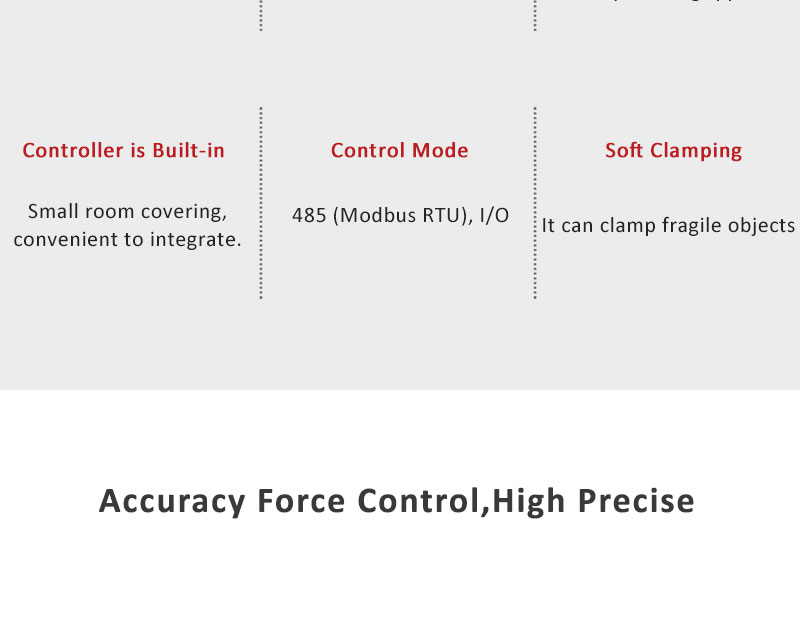

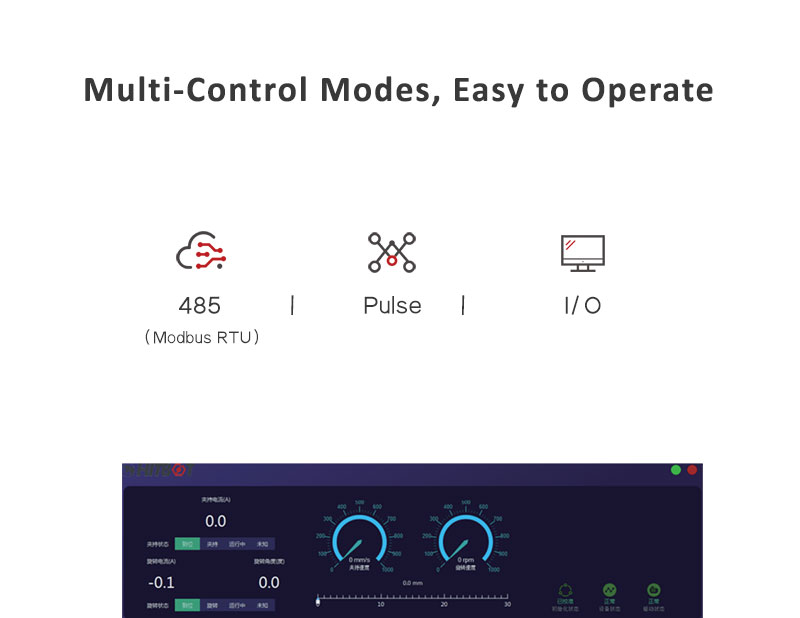

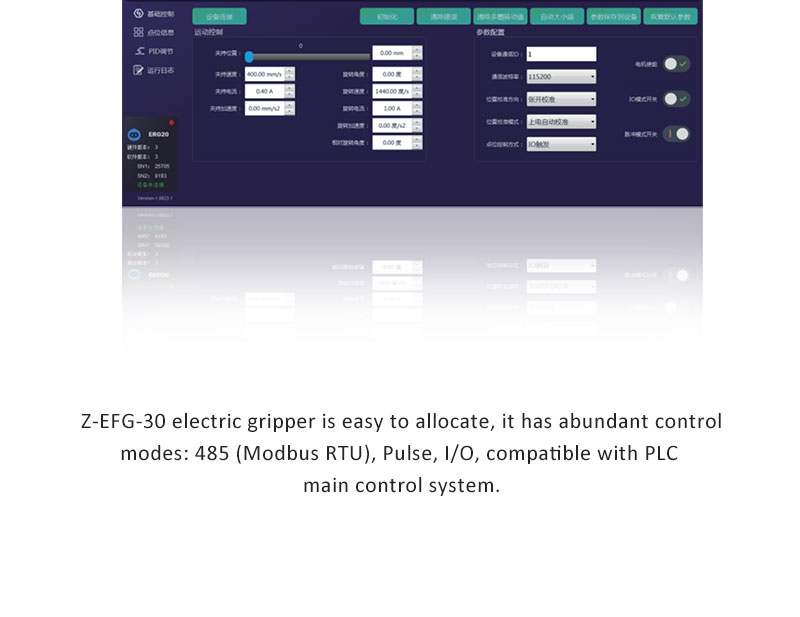

    Control Modes: Supports multiple control methods such as Modbus RTU (485), Pulse, and I/O, which can be integrated with a PLC control system.

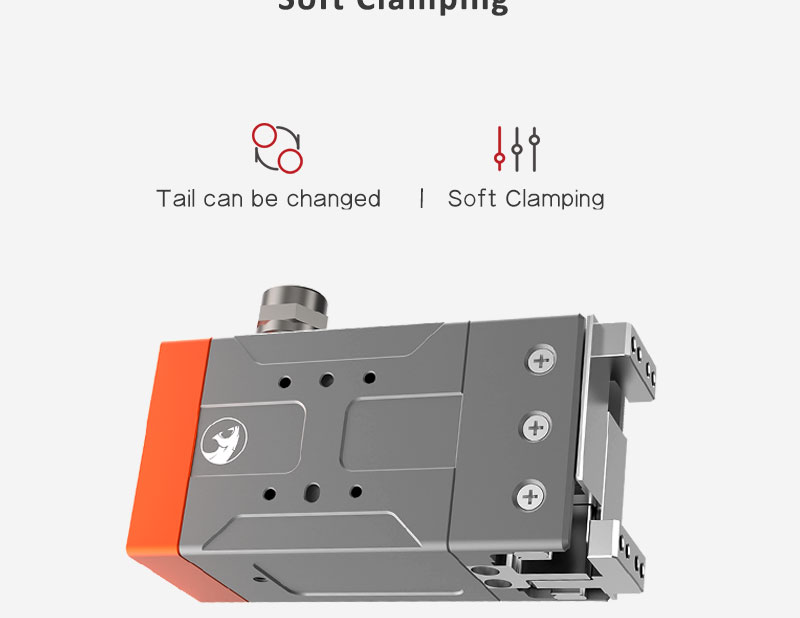

    Soft Clamping: Built-in soft clamping mode to handle fragile objects gently.

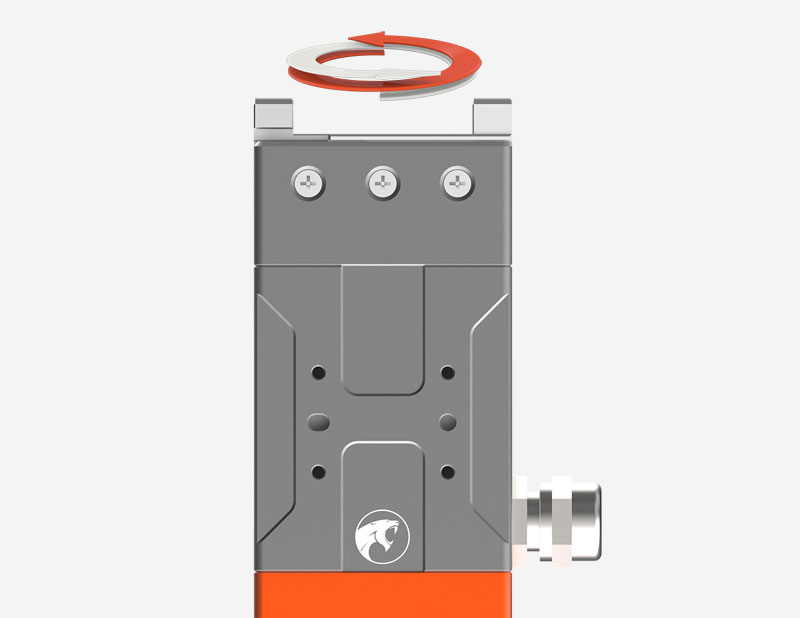

    Customization: The tail part can be easily changed for different clamping tasks.

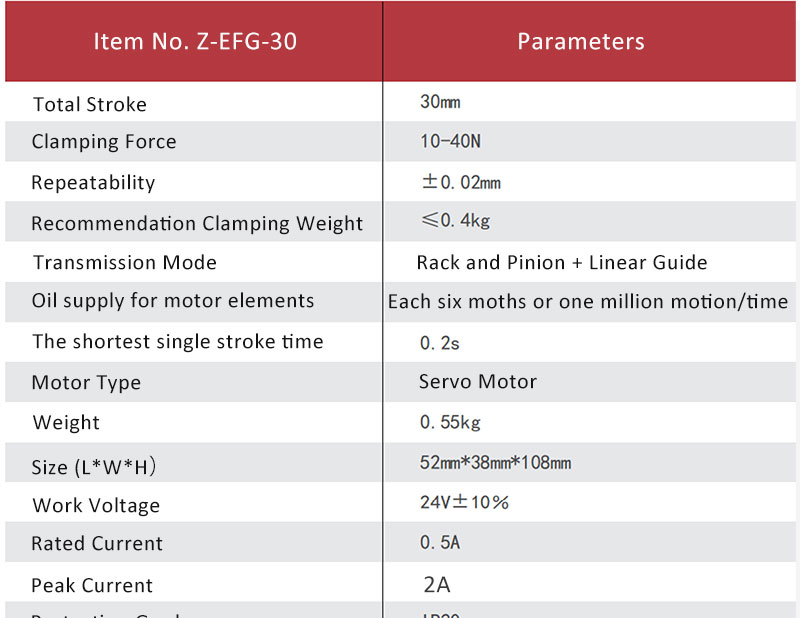

Specifications:

  • Clamping Force: 10N to 40N (adjustable).
    Total Stroke: 30mm (adjustable).
    Repeatability: ±0.02mm.
    Transmission Mode: Rack and pinion + linear guide.
    Motor Type: Servo motor.
    Weight: 0.55kg.

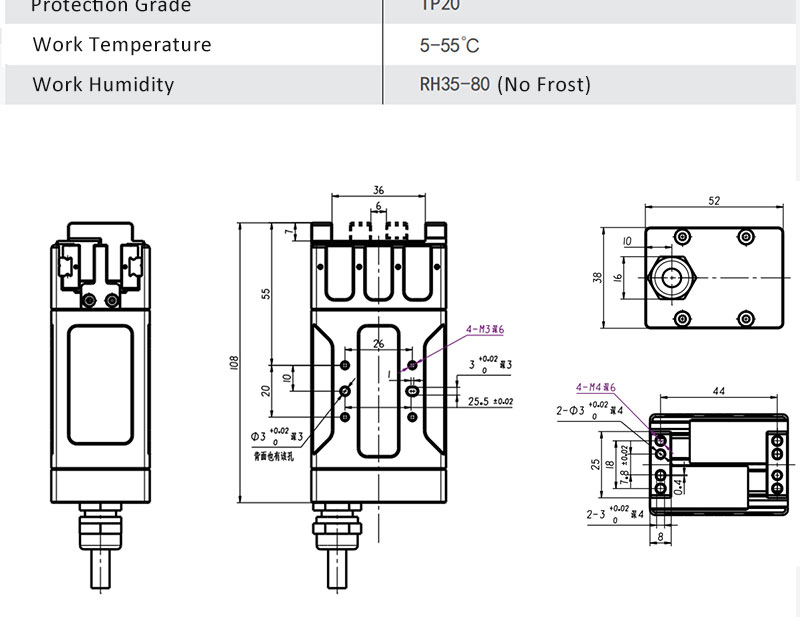

    Size (LWH): 52mm * 38mm * 108mm.
    Work Voltage: 24V ±10%.
    Rated Current: 0.5A.
    Peak Current: 2A.
    Operating Temperature: Not specified (typically 5°C to 55°C).
    Oil Supply: Required for motor elements every 6 months or after one million motions.
    Recommendation Clamping Weight: <0.4kg.

Additional Information:

The gripper is designed with a long lifespan, capable of tens of millions of cycles.

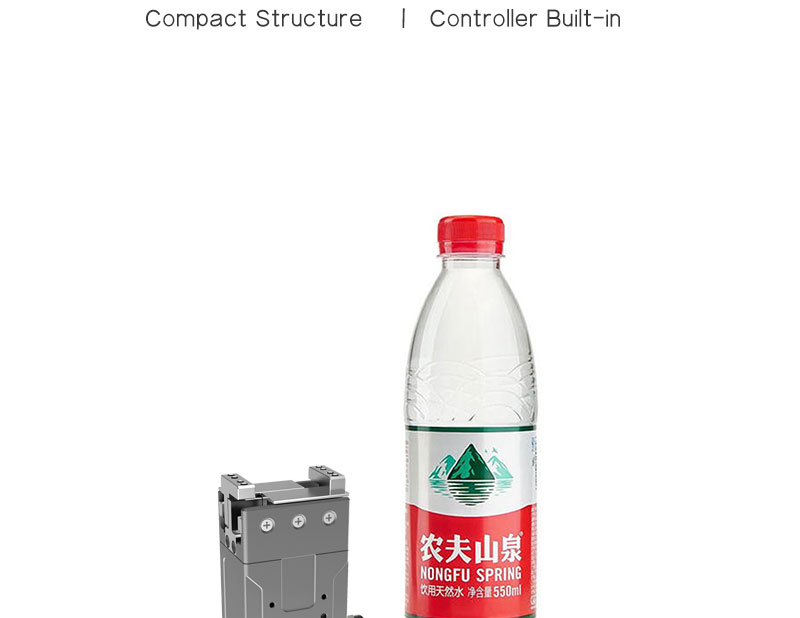

The built-in controller occupies minimal space, making it easier to install in tight spaces.
Suitable for a variety of clamping tasks, including those that require high precision and soft clamping for fragile objects.

z efg 30 detail 01 high precision gripper z efg 30 detail 02 high precision gripper z efg 30 detail 03 high precision gripper z efg 30 detail 04 high precision gripper z efg 30 detail 05 high precision gripper high precision gripper z efg 30 detail 07 high precision gripper z efg 30 detail 08 high precision gripper z efg 30 detail 09 high precision gripper z efg 30 detail 10 high precision gripper z efg 30 detail 11 high precision gripper z efg 30 detail 12 high precision gripper z efg 30 detail 13 high precision gripper z efg 30 detail 14 high precision gripper z efg 30 detail 15 high precision gripper
