Z-EFG-20P Electric Parallel Gripper for Robotic

Description

Z-EFG-20P Electric Parallel Gripper

The Z-EFG-20P is a high-precision electric parallel gripper designed for clamping tasks in small spaces, featuring adjustable clamping force and stroke. It is suitable for industries requiring accurate force control and high durability, with a long lifespan and compact design.
Key Features:

  • Big Clamping Force & Accuracy Control:
    Clamping force is adjustable between 30-80N.
    High repeatability of ±0.02mm for accurate clamping.
    Long Lifespan: Designed to withstand millions of cycles for extended use.
    Dynamic Mode: Features a two-finger parallel movement mode.
    Clamping Weight Capacity: Ideal for objects weighing up to 0.8kg.
    Control Mode: Compatible with 485 (Modbus RTU) and I/O control for easy integration.
    Stroke Speed: The shortest single stroke time is 0.40s, ensuring high-speed operation.
    Compact Design: The electric gripper’s size (L44mm * W30mm * H124.7mm) makes it easy to fit into tight spaces, with over 5 installation modes supported.

Specifications:

  • Total Stroke: 20mm (adjustable).
    Clamping Force: 30-80N (adjustable).
    Repeatability: ±0.02mm.
    Transmission Mode: Rack and pinion + cross roller guide.
    Oil Supply: For dynamic components, needs oil every 6 months or one million cycles.
    Movement Mode: Parallel, two-finger.
    Weight: 0.46kg.
    Size: 44mm (L) x 30mm (W) x 124.7mm (H).
    Work Voltage: 24V ±10%.
    Rated Current: 0.2A.
    Peak Current: 1A.
    Power Consumption: 5W.
    IP Grade: IP20 (not waterproof or dustproof).
    Motor Type: DC Brushless.
    Work Temperature Range: 5°C to 55°C.
    Work Humidity Range: RH 35-80% (no frost).

Additional Features:

Soft Clamping: Supports soft clamping mode, suitable for fragile or delicate objects.

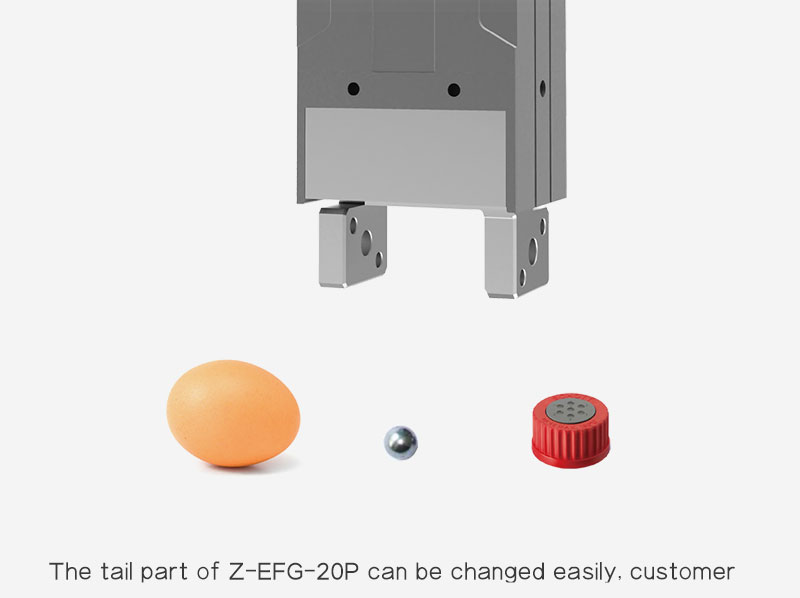

Customizable Tail Part: The tail of the gripper is changeable, allowing for customization according to clamping requirements and ensuring optimal clamping performance.

Ideal Applications:

Stable Clamping for Small Objects: The Z-EFG-20P is designed for applications requiring small footprint and high precision, including in industries with limited space for installation.
High Precision Clamping: The repeatability and adjustable force make it perfect for tasks that require delicate handling and accuracy.

This gripper is well-suited for high-speed automation, where reliable and stable clamping is essential, especially in production environments requiring frequent operation with minimal maintenance.

z efg 20p gripper 01 electric parallel gripper z efg 20p gripper 02 electric parallel gripper z efg 20p gripper 03 electric parallel gripper z efg 20p gripper 04 electric parallel gripper z efg 20p gripper 05 electric parallel gripper z efg 20p gripper 06 electric parallel gripper electric parallel gripper z efg 20p gripper 08 electric parallel gripper z efg 20p gripper 09 electric parallel gripper z efg 20p gripper 10 electric parallel gripper z efg 20p gripper 11 electric parallel gripper z efg 20p gripper 12 electric parallel gripper z efg 20p gripper 13 electric parallel gripper z efg 20p gripper 14 electric parallel gripper z efg 20p gripper 15 electric parallel gripper

Additional information

color

red, blue
