Z-EFG-12 Electric Robot Gripper

Description

Z-EFG-12 Electric Robot Gripper

Product Introduction:

The Z-EFG-12 is an electric 2-finger parallel robot gripper, small in size but powerful in gripping many soft objects such as eggs, pipes, electronic components, etc.

  • Adopt DC brushless motor.
  • Terminals can be changed to meet various requirements.
  • Could be used to clamp eggs, test tubes, and other annular objects.
  • Suitable for fragile items such as laboratories.

robot gripper
Product Parameters:

  Product Name:   Robotic Electric Gripper
  Item No.:   Z-EFG-12
  Total Stroke   12mm
  Clamping Force   30N
  Recommended Gripping Weight   ≤0.5KG
  One-way Stroke Motion Time   0.2s
  Grease Supply for Motion Components   6 months or one million motion per time
  Work Temperature   5-55℃
  Work Humidity   RH35-80 (No Frost)
  Motion Mode   2-fingers parallel
  Product Weight   0.4KG
  Product Size   48*32*105.6mm
  Controller Position   Built-in
  Power   5W
  Motor Type   DC
  Rated Voltage   24V
  Standby Current   ≤0.02A
  Peak Current   1A

Product Description:

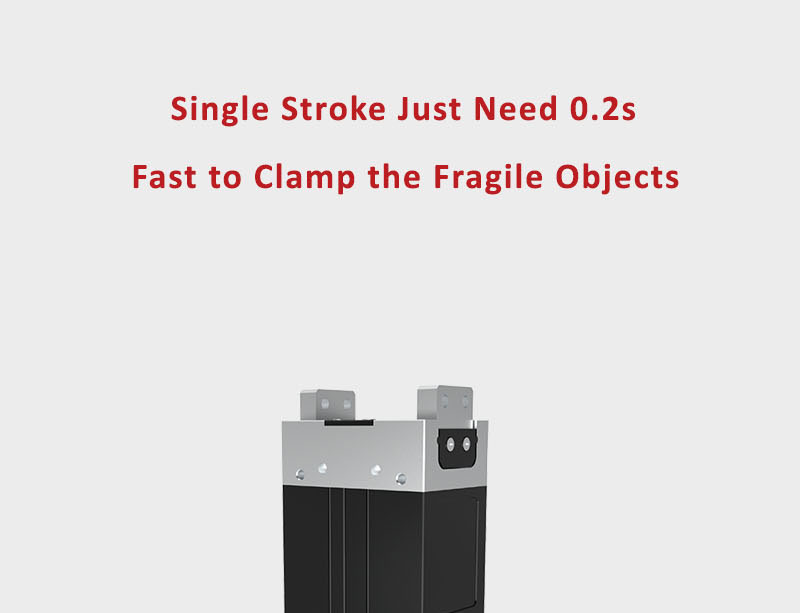

efg 12 hitbot 01 robot gripper efg 12 hitbot 02 robot gripper efg 12 hitbot 03 robot gripper efg 12 hitbot 04 robot gripper efg 12 hitbot 05 robot gripper efg 12 hitbot 06 robot gripper robot gripper efg 12 hitbot 08 robot gripper 12 hitbot 09 robot gripper 12 hitbot 10 robot gripper 12 hitbot 11 robot gripper efg 12 hitbot 12 robot gripper efg 12 hitbot 13 robot gripper

Additional information

color

red, blue
