Electric Wide Gripper Z-EFG-60-150

Description

Hitbot Wide Electric Gripper Z-EFG-60-150

Electric Wide Gripper Z-EFG-60-150

1.Item No.: Z-EFG-60-150
2.Stroke: 60mm
3.Clamping Force: 60-150N
4.Mechanical Self-locking: No drop after power off
5.Clamping Weight Recommendation: 1.5kg

Key Features:

1.Mechanical Self-locking: Prevents drop after power loss.
2.Fast Reaction: Built-in controller ensures quick response.
3.Long Lifespan: Designed for tens of millions of cycles.
4.Small Space: Compact size, occupies minimal space.
5.High Repeatability: Force accuracy is ±0.02mm.

Stroke and Force:

1.The wide gripper’s total stroke is 60mm, with adjustable clamping force (60-150N).
2.Stroke repeatability is ±0.02mm, ensuring precision.

Design and Speed:

1.The electric wide gripper uses a screw rod, timing belt, and ball guide.
2.The shortest single stroke time is 0.6s.
3.It meets production line clamping requirements.

Structure and Size:

1.The gripper adopts a two-finger parallel structure.

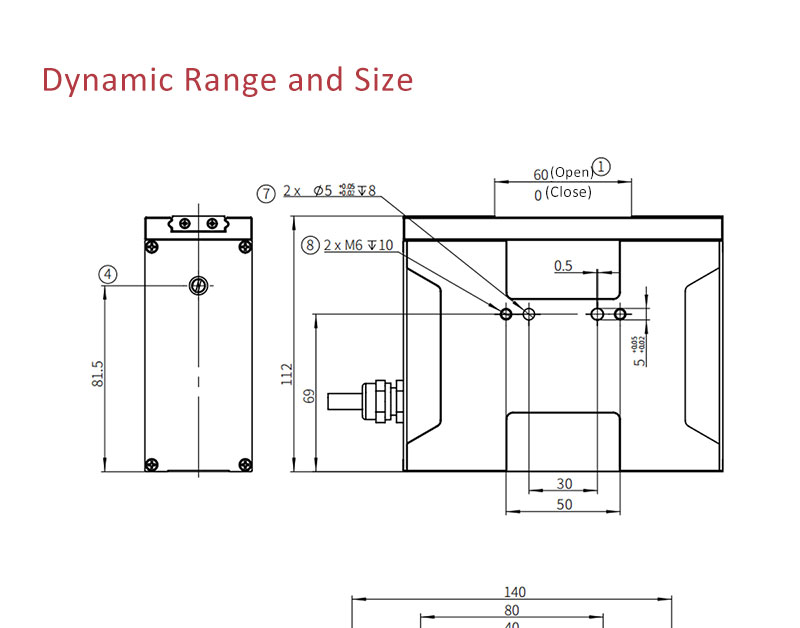

2.Its dimensions are 112*47*140mm, compact and easy to integrate.
3.The controller is built-in, saving space.
4.Supports up to 5 installation modes.

Control and Integration:

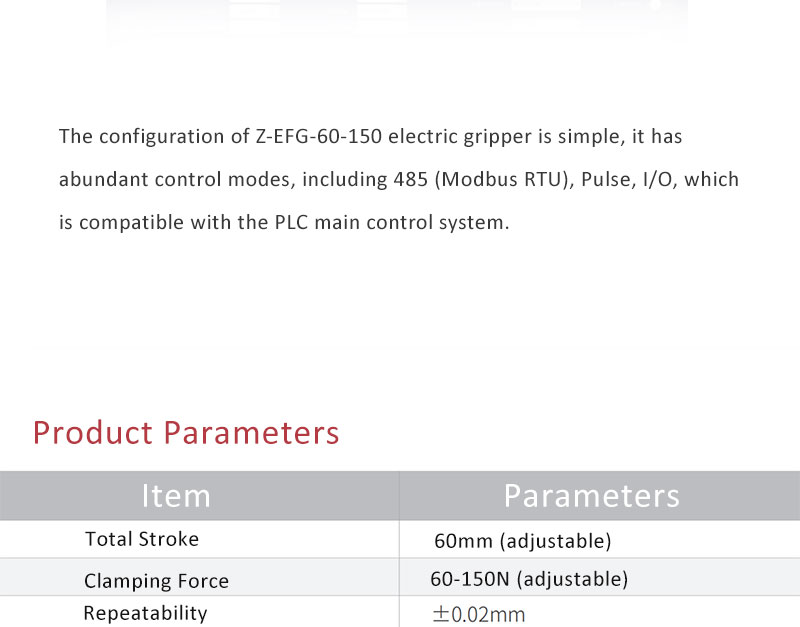

1.The gripper offers various control modes: 485 (Modbus RTU), Pulse, I/O.
2.It is compatible with the PLC main control system.

Product Parameters:

1.Total Stroke: 60mm (adjustable)
2.Clamping Force: 60-150N (adjustable)
3.Repeatability: ±0.02mm
4.Transmission Mode: Screw rod + Timing belt + Ball guide
5.Oil Supplement: Every 6 months or after millions of cycles
6.Stroke Time: 0.6s
7.Movement Type: Two-finger parallel
8.Weight: 1.2kg
9.Size: 112*47*140mm
10.Working Voltage: 24V ±10%
11.Rated Current: 1A
12.Peak Current: 8A
13.Power: 30W
14.IP Grade: IP20
15.Motor Type: DC Brushless
16.Temperature Range: 5~55°C
17.Humidity Range: 35~80% RH (no frost)
