Z-Arm1832 Collaborative Robot Arm

Description

Z-Arm1832 Collaborative Robot Arm

Product Introduction:
HITBOT Z-Arm 1832 is a 4-aixs collaborative robot arm with 180mm travel reaching of Z axis and 320mm arm reach.

  • Compact and Precise.
    Flexible to deploy in various application scenarios.
  • Simple but Versatile.
    Easy to program and use, handheld teaching programming, SDK secondary development supported.
  • Collaborative and Safe.
    Collision detection supported, smart human-machine collaboration.

collaborative robot arm 1832 robotic arm dis 02 collaborative robot arm

Product Parameter:

  Product Name:   Robotic Arm
  Item No.:   Z-Arm 1832
  J1 Axis Arm Reach   160mm
Rotatoin Range   ±90°
  J2 Axis Arm Reach   160mm
Rotation Range   ±143°
  Z Axis Reach   180mm
  R Axis Reach   ±1080°
  Number of axis   4
  Rated Payload   0.5KG
  Maximum Payload   1KG
  Linear Velocity   1017mm/s
  Repeatability   ±0.02mm
  Voltage   220V/110V 50-60Hz DC24V/Power 320W
  Communication   Ethernet
  Customizable Z-axis height   0.1-0.5 meter

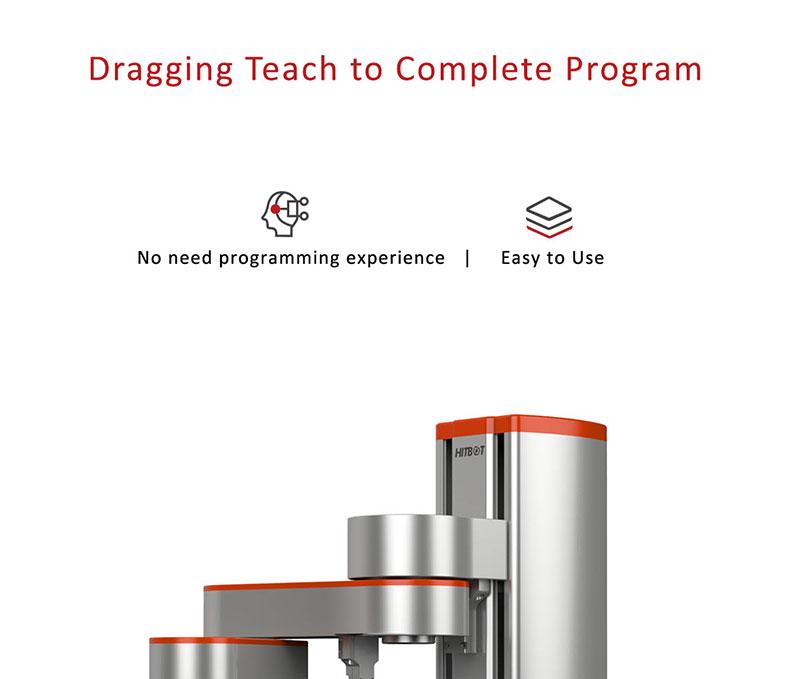

  Z axis drag to teach   Yes
  Supportable HITBOT Grippers   Z-EFG-8S / Z-EFG-12 / Z-EFG-20 / Z-EFG-20S
  Working Environment   Temperature: 0-45℃, Humidity: RH20-80 (No Frost)
  I/O Ports: Digital Input (Isolated)   9+3
  I/O Ports: Digital Output (Isolated)   9+3
  Height   500mm
  Weight   11KG
  Machine Base Size: Footprint   200*200*10mm

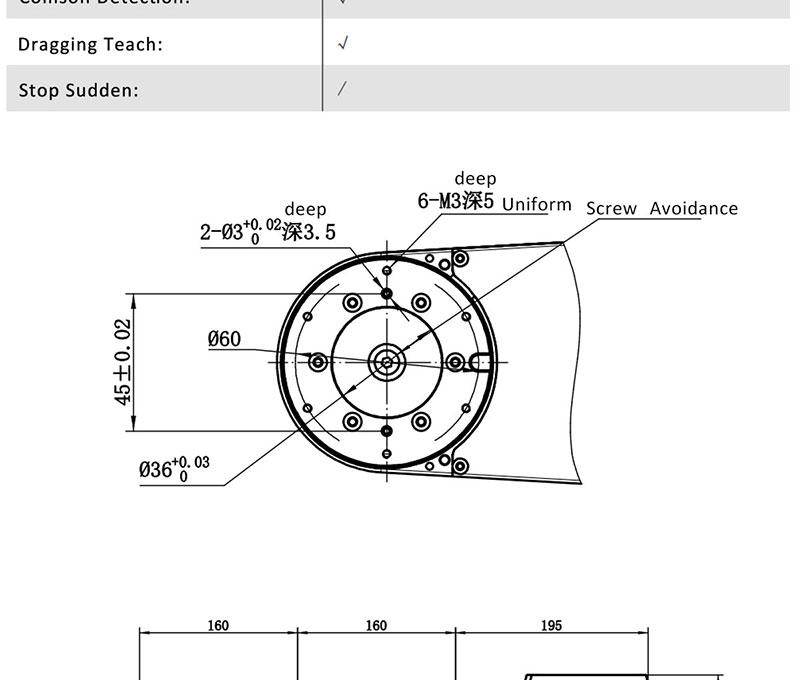

  Machine base size: Machine fixing holes spacing   160*160 (with 4 M5*12 screws)
  Collision Detection   Support
  Hand-held drag to teach   Support

Product Detail:
1832 hitbot 01 collaborative robot arm 1832 hitbot 02 collaborative robot arm 1832 hitbot 03 collaborative robot arm 1832 hitbot 04 collaborative robot arm 1832 hitbot 05 collaborative robot arm 1832 hitbot 06 collaborative robot arm 1832 hitbot 07 collaborative robot arm 1832 hitbot 08 collaborative robot arm 1832 hitbot 09 collaborative robot arm 1832 hitbot 10 collaborative robot arm 1832 hitbot 11 collaborative robot arm 1832 hitbot 12 collaborative robot arm 1832 hitbot 13 collaborative robot arm 1832 hitbot 14 collaborative robot arm 1832 hitbot 15 collaborative robot arm 1832 hitbot 16 collaborative robot arm

Additional information

color

red, blue
